额定压力 | 25Mpa |
---|---|
控制形式 | 自动 |
类型 | 液压机 |
流动方向 | 换向 |
适用范围 | 通用 |
油箱容量 | 400L |
种类 | 压力机 |
重量 | 4000 |
柱数 | 四柱 |
安装形式 | 立式 |
适用行业 | 通用 |
布局形式 | 立式 |
作用对象材质 | 金属 |
品牌 | 滕州大正 |
店内液压机配置不同价格也不同,所有液压机价格以客服报价为准,谢谢合作!
一、200吨四柱液压机技术参数:
公称力:2000kN
液体工作压力:25MPa
行程:600mm
**开口高度:1000mm
工作台有效面积:800×800mm
空载快下速度:240mm/s
工进速度:9~18
回程速度:155mm/s
电机功率:15kW
二、四柱液压机简介:
1)四柱液压机用途
三梁四柱式液压机为通用型液压机,适用于金属材料的压制工艺,如冲压、弯曲、成型、挤压、薄板拉伸及粉末制品的压制成型,也可用于树脂、PMC等非金属制品的热压成型工艺。
2)四柱液压机结构特点
本系列液压机为三梁四柱式结构,压制精度高、经济实用。具有独立的液压泵站和电气控制系统。液压控制采用插装阀集成系统,结构紧凑、动作可靠、密封性能好、使用寿命长、安装维修方便。油压采用数显压力控制器显示,并可根据需要在允许范围内任意设定油压上限。电气系统采用按钮集中控制,并设有点动、自动两种操作模式。工作压力和行程可根据需要在规定范围内任意调节,并能完成定压和定程两种成型方式。
1)use
This series hydraulic press have universal usage, They pressed for metal materials, processes, such as stamping, bending, molding, extrusion, sheet stretching and molding powder products, and they can also be used for plastics thermoforming processes.
2)Structural characteristics
This series of hydraulic press for three-beam four-post structure, they have economical and practical, high-pressure precision. With independent hydraulic pump station and electrical control systems. Hydraulic control cartridge valve integrated system, compact structure, reliable operation, good sealing performance, long life, easy installation and maintenance. Hydraulic pressure gauge with digital display, you can set hydraulic limit within the allowable range. The electrical system uses centralized control buttons, and has jog, semi-automatic modes of operation. Working pressure and stroke can be adjusted according to the needs within the specified range, and can be completed in two-way constant pressure and constant molding methods.

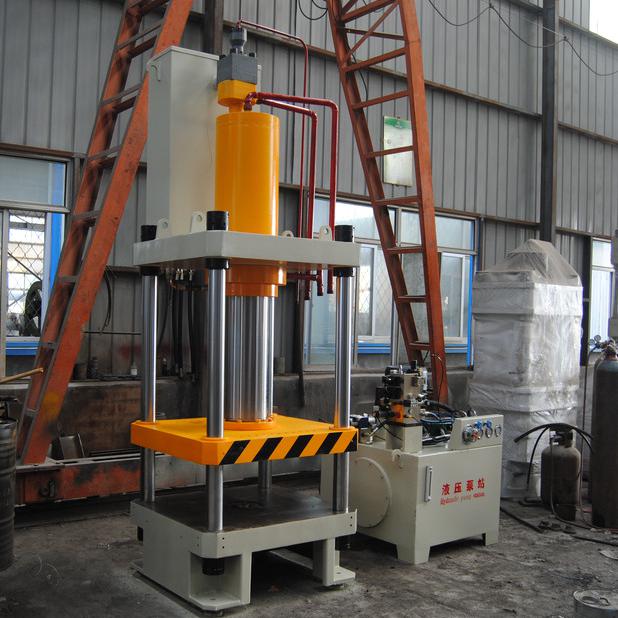

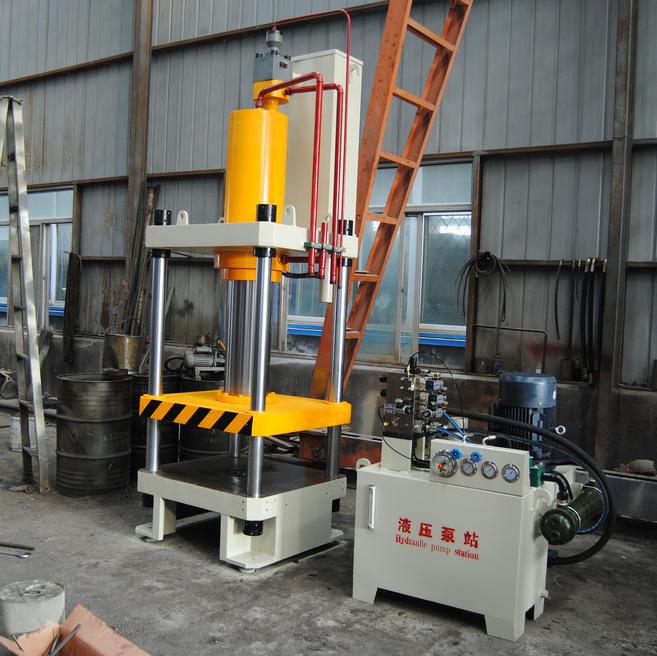

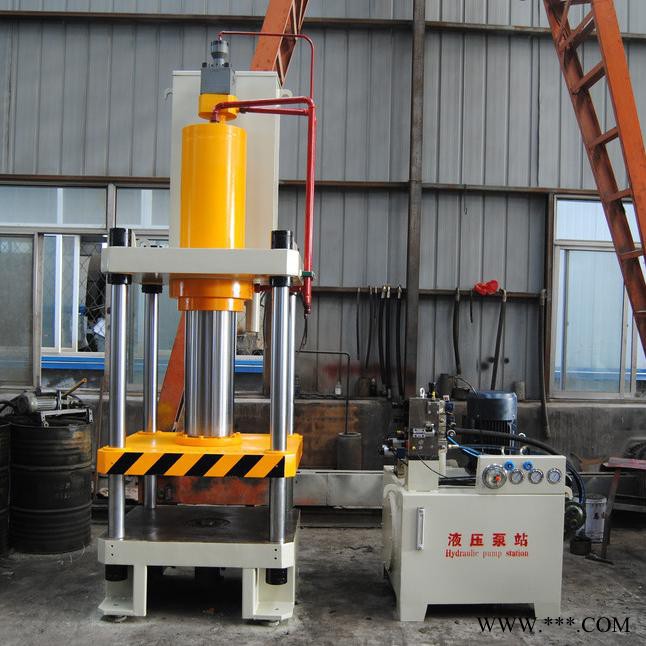

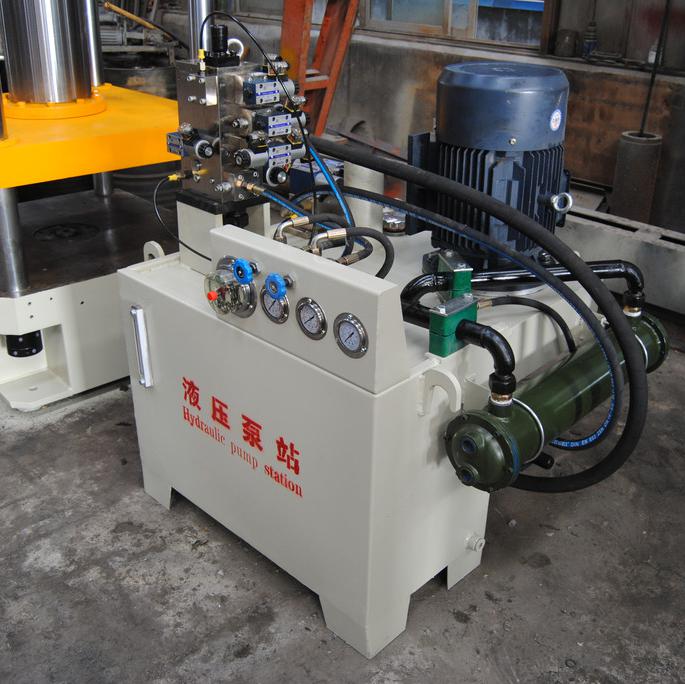

三、四柱液压机产品实拍:
